| Technical parameters | |
| MAX Suction lift Suction height changes with different combinations of ball seat and the diaphragm materials. |
dry 5mwet 8m |
| Max. particle diameter | 5mm |
| suction and discharge size | 1in/Npt/F |
| Air inlet size | 1/2in |
| Max. flow rate | 358L/min |
| MAX. head | 84m |
| Max. air inlet pressure | 8.4bar |
| Max. air consumption | 125scfm(3.5/min) |
| Main body material | 304SST 316SST |

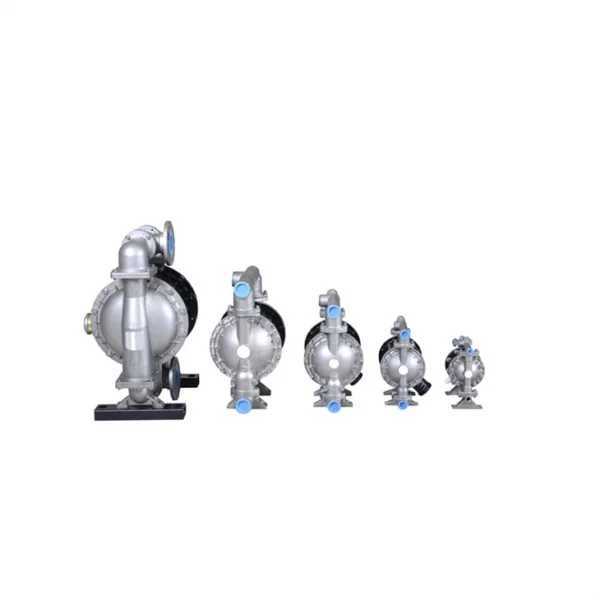

Stainless Steel Diaphragm Pump
A volumetric pump, the working part of which is a flexible plate fixed at the edges; the plate flexes under the action of a lever or rocker mechanism, a solenoid, or as a result of changes in air or fluid pressure, performing a function equivalent to that of a piston in a reciprocating pump.
