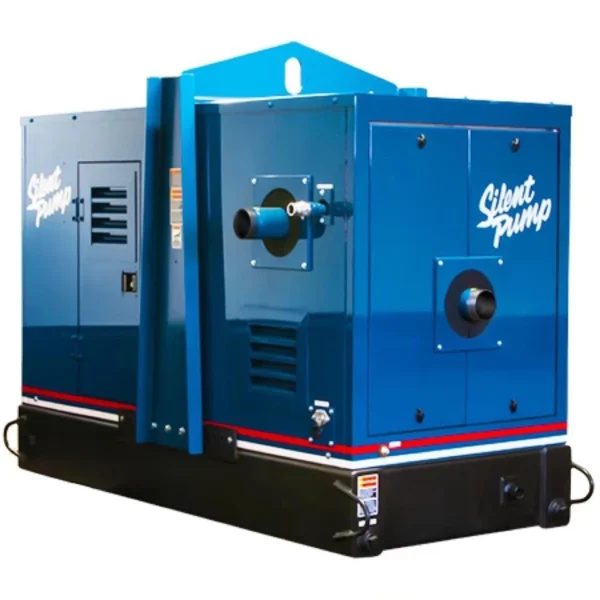

Portable Muffler Pumping System

Portable Muffler Pumping System

For pumping applications where noise levels must be kept to a minimum,it offers a sound-attenuated engine-driven pump unit. Lockable doors prevent unauthorized personnel from tampering with the pump, fuel, engine or controls during unattended service.

For pumping applications where noise levels must be kept to a minimum,it offers a sound-attenuated engine-driven pump unit. Lockable doors prevent unauthorized personnel from tampering with the pump, fuel, engine or controls during unattended service. Fuel capacity allows for a minimum of 24 hours of continuous operation. All units feature a lightweight, corrosion-resistant aluminum enclosure that is acoustically treated to maintain noise levels as low as 63 dBa while operating at full load. Our environmentally engineered Silent Pump units operate much quieter than current industry standards.

Models

Item Size Casing Impeller / Rotor Drive Flange Seal
T4A60S-4LE2T FT4-ESP 4 x 4 Cast Iron Ductile Iron Diesel Engine SP NPT Silicon Carbide
T6A60S-4045T FT4-ESP 6 x 6 Cast Iron Ductile Iron Diesel Engine SP NPT Silicon Carbide
T6A60S-4045T-ESP 6 x 6 Cast Iron Ductile Iron Diesel Engine SP NPT Silicon Carbide
T6A60S-4LE2X FT4-ESP 6 x 6 Cast Iron Ductile Iron Diesel Engine SP NPT Silicon Carbide
Size

6" (150 mm)

Max Capacity

1600 GPM (101lps)

Max Head

140' (43 m)

Max Solids

3" (76 mm)

Materials of Construction

Cast Iron
