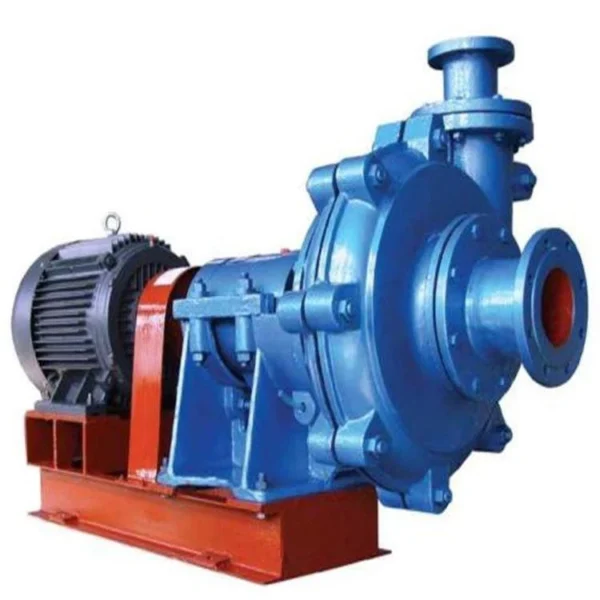

Dirty Liquid Centrifugal Pump
It is widely used in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors. It is mainly used to transport abrasive slurry containing solid particles, such as processing concentrates and tailings in concentrators, ash removal in power plants, and conveying in coal preparation plants. Slime and heavy medium coal preparation, conveying slurry, etc.
| Model | Maximum power allowed (KW) |
Clear water performance | Intermittent through maximum granularity (mm) | ||||
| Flow Q(m³/h) |
Head H(m) |
Rotating speed n(r/min) |
Highest efficiency η(%) |
(NPSH)r (m) |
|||
| 300ZJ-1-A100 | 450 | 464-1826 | 15.3-65.2 | 300-590 | 80.7 | 3 | 88 |
| 300ZJ-1-A95 | 400 | 441-1735 | 13.8-58.8 | 300-590 | 77.7 | 3 | 88 |
| 300ZJ-1-A90 | 560 | 505-1844 | 21.2-79.9 | 400-730 | 81.4 | 3.9 | 85 |
| 300ZJ-1-A85 | 450 | 477-1742 | 18.9-71.3 | 400-730 | 78.4 | 3.8 | 85 |
| 300ZJ-1-A70 | 630 | 635-2333 | 16.0-76.8 | 490-980 | 80.4 | 3.9 | 92 |
| 300ZJ-1-A65 | 500 | 589-2166 | 13.8-66.2 | 490-980 | 77.4 | 3.7 | 92 |
| 300ZJ-1-A56 | 250 | 395-1568 | 9.7-46.0 | 400-980 | 80.9 | 3.5 | 96 |
| 250ZJ-1-A103 | 560 | 402-1573 | 29.7-110.5 | 400-730 | 74.5 | 2.8 | 69 |
| 250ZJ-1-A96 | 560 | 403-1466 | 25.4-93.7 | 400-730 | 77.8 | 3.5 | 69 |
| 250ZJ-1-A90 | 450 | 378-1374 | 22.3-82.4 | 400-730 | 73.8 | 3.4 | 69 |
| 250ZJ-1-A85 | 800 | 376-1504 | 30.1-128.7 | 490-980 | 75.6 | 3.5 | 76 |
| 250ZJ-1-A83 | 800 | 367-1469 | 28.7-122.7 | 490-980 | 74.6 | 3.5 | 76 |
| 250ZJ-1-A80 | 710 | 354-1416 | 26.7-114.0 | 490-980 | 72.6 | 3.4 | 76 |
| 250ZJ-1-A78 | 630 | 345-1380 | 25.4-108.4 | 490-980 | 70.6 | 3.2 | 76 |
| 250ZJ-1-A75 | 560 | 300-1480 | 20.8-97.5 | 490-980 | 76 | 3 | 72 |
| 250ZJ-1-A73 | 500 | 292-1441 | 19.7-92.4 | 490-980 | 75 | 3 | 72 |
| 250ZJ-1-A70 | 450 | 280-1381 | 18.1-84.9 | 490-980 | 73 | 2.9 | 72 |
| 250ZJ-1-A68 | 450 | 272-1342 | 17.1-80.1 | 490-980 | 72 | 2.7 | 72 |
| 250ZJ-1-A65 | 315 | 299-1249 | 15.4-71.0 | 490-980 | 76.9 | 3 | 72 |
| 250ZJ-1-A63 | 315 | 290-1211 | 14.4-66.7 | 490-980 | 75.9 | 3 | 72 |
| 250ZJ-1-A60 | 280 | 276-1153 | 13.1 -60.5 | 490-980 | 73.9 | 2.8 | 72 |
| 200ZJ-1-A85 | 560 | 221 -907 | 32.0-133.7 | 490-980 | 70.5 | 2.8 | 54 |
| 200ZJ-1-A75 | 355 | 225-900 | 22.8-102.9 | 490-980 | 72.8 | 3 | 56 |
| 200ZJ-1-A73 | 355 | 219-876 | 21.6-97.5 | 490-980 | 71.8 | 3 | 56 |
| 200ZJ-1-A70 | 315 | 205-976 | 19.4-86.4 | 490-980 | 75.6 | 2.8 | 56 |
| 200ZJ-1-A68 | 315 | 1 99-948 | 18.3-81.5 | 490-980 | 74.6 | 2.8 | 56 |
| 200ZJ-1-A65 | 250 | 235-950 | 16.4-72.0 | 490-980 | 79.6 | 2.5 | 62 |
| 200ZJ-1-A63 | 250 | 228-921 | 15.4-67.6 | 490-980 | 78.6 | 2.5 | 62 |
| 200ZJ-1-A60 | 185 | 218-870 | 13.9-62.0 | 490-980 | 82.7 | 2.5 | 62 |
| 200ZJ-1-A58 | 185 | 211-841 | 13.0-57.9 | 490-980 | 81.7 | 2.5 | 62 |
| 150ZJ-1-A71 | 220 | 142-552 | 21.8-93.8 | 490-980 | 69.8 | 2.4 | 48 |
| 150ZJ-1-A70 | 185 | 93-401 | 22.0-91.2 | 490-980 | 62.3 | 2 | 37 |
| 150ZJ-1-A65 | 200 | 1 50-600 | 17.4-75.7 | 490-980 | 69.2 | 2.5 | 48 |
| 150ZJ-1-A63 | 185 | 146-582 | 16.3-71.1 | 490-980 | 69.2 | 2.5 | 48 |
| 150ZJ-1-A60 | 160 | 135-550 | 14.7-63.5 | 490-980 | 74.6 | 2.5 | 48 |
| 150ZJ-1-A58 | 132 | 131-532 | 13.7-59.3 | 490-980 | 73.6 | 2.5 | 48 |
| 150ZJ-1-A55 | 110 | 124-504 | 12.3-53.4 | 490-980 | 71.6 | 2.3 | 48 |
| 150ZJ-1-C58 | 160 | 1 34-596 | 12.8-61.0 | 490-980 | 69.1 | 2 | 75 |
| 150ZJ-1-A57 | 110 | 95-427 | 13.2-56.3 | 490-980 | 66.6 | 1.8 | 32 |
| 150ZJ-1-A55 | 110 | 124-504 | 12,3-53.4 | 490-980 | 72.9 | 2.3 | 48 |
| 150ZJ-1-A50 | 75 | 115-460 | 9.5-43.1 | 490-980 | 76.8 | 2.5 | 48 |
| 150ZJ-1-A48 | 75 | 111 -442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 |
| 150ZJ-1-C42 | 132 | 142-550 | 12.1 -62.8 | 700-1480 | 76.4 | 2.2 | 69 |
| 100ZJ-1-A50 | 160 | 85-360 | 20.5-100.2 | 700-1480 | 68.5 | 2.5 | 34 |
| 100ZJ-1-A46 | 132 | 79-331 | 17.3-84.8 | 700-1480 | 66.5 | 2.3 | 34 |
| 100ZJ-1-A42 | 90 | 66-275 | 14.7-70.8 | 700-1480 | 70.4 | 2.5 | 35 |
| 100ZJ-1-A39 | 75 | 61-255 | 12.6-61.0 | 700-1480 | 68.4 | 2.4 | 35 |
| 100ZJ-1-B42 | 90 | 45-205 | 12.6-70.7 | 700-1480 | 63.2 | 1.8 | 18 |
| 100ZJ-1-A36 | 55 | 61 -245 | 9.7-49.5 | 700-1480 | 71.6 | 2 | 32 |
| 100ZJ-1-A33 | 45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 |
| 80ZJ-1-A52 | 160 | 51-242 | 22.1-109.8 | 700-1480 | 56.3 | 2.1 | 21 |
| 80ZJ-1-A42 | 75 | 61 -204 | 14.4-70.4 | 700-1480 | 66.7 | 2.5 | 24 |
| 80ZJ-1-A39 | 55 | 57-189 | 12.4-60.7 | 700-1480 | 64.7 | 2.4 | 24 |
| 80ZJ-1-A36 | 45 | 46-190 | 9.6-51.4 | 700-1480 | 67.7 | 2.4 | 24 |
| 80ZJ-1-A33 | 37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 |
| 65ZJ-1-A30 | 15 | 23-79 | 7.4-34.8 | 700-1480 | 63.5 | 2 | 19 |
| 65ZJ-1-A27 | 11 | 20-71 | 6.0-28.2 | 700-1480 | 61.5 | 1.8 | 19 |
| 50ZJ-1-A50 | 90 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3 | 13 |
| 50ZJ-1-A46 | 55 | 23-94 | 17.9-85.8 | 700-1480 | 44.7 | 1.4 | 13 |
| 50ZJ-1-A33 | 18.5 | 12-54 | 7.7-42.5 | 700-1480 | 42.1 | 2.9 | 13 |
| 40ZJ-1-A19 | 15 | 8-35 | 12.8-57.1 | 1430-2930 | 58.8 | 1.3 | 11 |
| 40ZJ-1-A17 | 7.5 | 4-23 | 9.0-44.6 | 1400-2900 | 52.4 | 2.5 | 11 |
